Institutional underground pipeline investigation
Underground Water Pipe Leak Investigation in Putrajaya
An earlier shallow excavation showed water but did not expose the damaged pipe. The approximately 100 mm HDPE pipe was about 2 metres below ground.
01
Case Overview
The investigation was carried out at an institutional complex in Putrajaya. The pipeline was approximately 100 mm HDPE and was believed to be buried about 2 metres below ground. LeakPinpoint’s work covered underground investigation and marking of the suspected area for excavation.
02
Initial Site Condition
An earlier shallow opening showed visible water but did not expose the actual damaged section. The pipeline remained substantially deeper than the opening.
03
Why Visible Water Did Not Confirm the Failure Point
Water escaping from a buried pipe can travel through soil or backfill before appearing at the surface. Because of this, the place where water becomes visible may be some distance from the damaged section.
For a deep pipeline, visible water alone is not enough to confirm the failure point. The actual pipe condition can only be confirmed after excavation.
04
Investigation Approach
We compared readings at several accessible points and marked the suspected area for the contractor to check.
- Review the site condition. Available site information, the earlier opening and accessible test points were reviewed together.
- Compare multiple points. Readings and observations from different accessible points were compared to narrow the suspected area.
- Mark the suspected area. Once the evidence was sufficiently consistent, the suspected area was marked for controlled excavation by the appointed contractor.
05
Progressive Area Narrowing
Readings and site observations from accessible points were compared until the suspected area could be narrowed down. Pipe material, burial depth, pressure, soil conditions, access and background noise were taken into account.
06
Suspected Location Marking
After the available field evidence had been assessed, the suspected area was marked to guide controlled excavation by the appointed contractor.
The mark showed the area where physical confirmation should begin. The exact pipe condition and repair scope were confirmed only after the pipe was exposed.
07

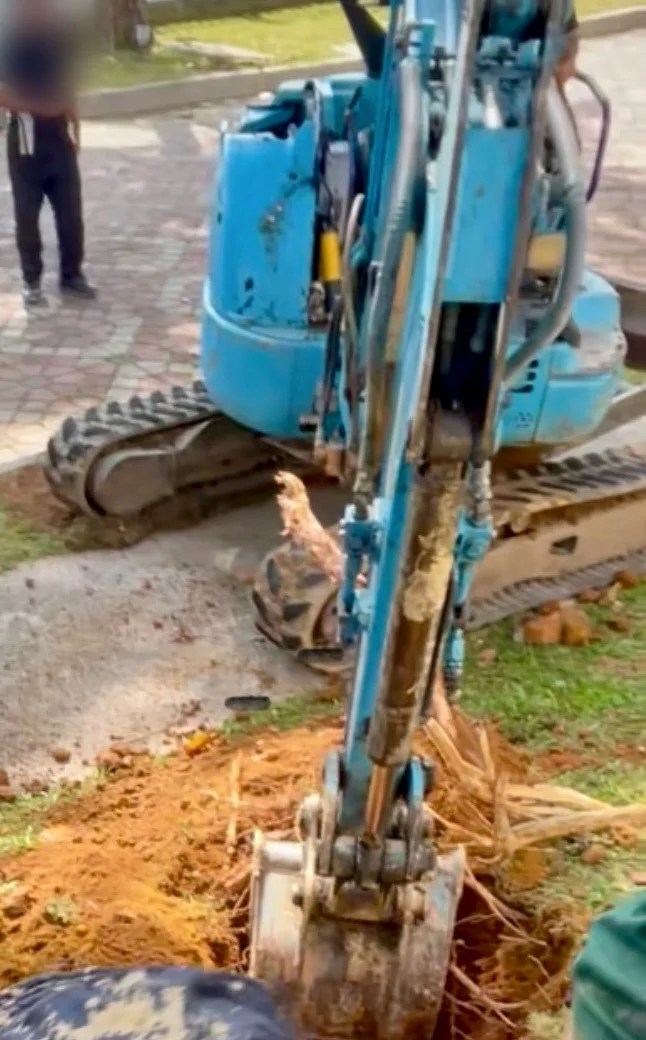

Excavation photographs and the approved project record.

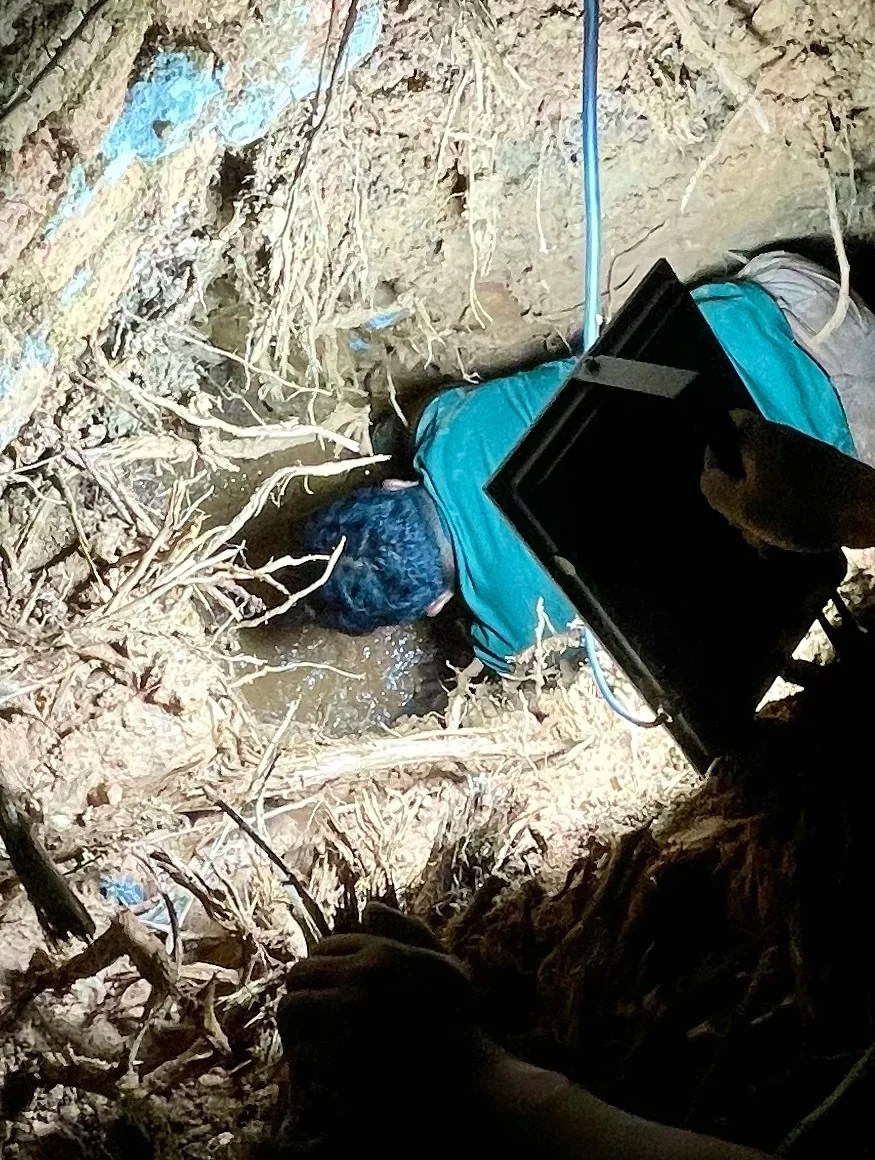

Subsequent excavation by the appointed contractor exposed the deeper pipeline and confirmed the damaged section. The earlier shallow opening and the confirmed point of failure were not the same location.
LeakPinpoint did not carry out excavation, repair, pipe replacement or reinstatement.
08
Key Technical Lessons
- Leaking water can travel through the ground before appearing at the surface. The wet spot alone may not show where the pipe is damaged.
- Deeper pipelines often require comparison at several accessible points.
- Pipe material, pressure, soil, access and background noise can affect the findings.
- A structured investigation can help reduce unnecessary excavation.
- The exact pipe condition is confirmed only after the pipe is exposed.
09
Scope and Limitations
Findings were based on the conditions and evidence available at the time of inspection. The marked area was used to guide excavation, while the exact pipe condition and repair requirements were confirmed after the pipe was exposed.
Excavation, repair, pipe replacement and reinstatement were handled separately by the appointed contractor or project team.
